5 axis CNC bridge saw is an automatic stone machining equipment that can complete the processing of pentahedron special-shaped curved surfaces at one time through five-axis linkage control, that is, three linear moving axes and two rotating axes. It is a type of automatic CNC machine tailor-made for the majority of stone fabricators by IGOLDENCNC in order to meet the cutting plans of stone machining manufacturers. It has various processing modes of cutting, milling, engraving, and drilling. The bridge saw features with multiple functions, small footprint, simple operation, precise cutting, quick and convenient conversion of different functions.

$25,000.00 – $28,000.00

* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.

Send Inquiry Chat Now

Categories: Bridge Saw Machine, Stone CNC Machine

Description
Reviews (3)

CNC Cutting Bridge Saw Description

Intelligent five-axis bridge cutting machine is a comprehensive five-axis processing equipment. It has the function of taking photos, positioning and typesetting, automatic measurement of plate thickness and tool size, and the head can rotate 360 degrees. Cutting, edging, chamfering, digging and other multi-functional intelligent operating system, simple and easy to learn; High quality motor, high precision, fast speed; Transverse, longitudinal, arc, circular, arbitrary Angle, shape cutting. The machine head can move and rotate freely. Besides cutting modeling, it can also open material for large plate, 45 degree chamfering, open basin hole, stove hole, and slash line cutting.

Send Inquiry

CNC Cutting Bridge Saw Video

Stone Bridge Saw Machine Parameter:

Technical indicators	parameter
Model	iGS-B3320（Pro）
Stroke of X axis	3300mm
Stroke of Y axis	2000mm
Z-axis stroke 1	255mm（Blade Diameter 400mm）
A axis	90°
C axis	360°
Saw blade motor power	7.5kw/11kw / 15kw/18.5kw
Blade Diameter	350mm/400mm/450mm
Motor power	XYZ axis 1.8kw (Z-axis holding brake); A-axis 0.85kw; C axis 1.3kw
Input power	3-phase AC 380V/220V 50-60Hz 10A

If you need more detailed information, please inform us as soon as possible.

Large Saw Blade

4kw high-power large saw blade cutting depth 10cm.Pure copper motor, 360° automatic rotating head.Low noise, long life, all-round cutting.

Blade Saw

This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.

Laser positioning

Laser positioning function, more accurate standard, improve the accuracy.

Automatic touch screen cutcam system

Professional CNC system, easy to set and machining, touch control, simple operation.

Send Inquiry

Bridge Cutting Machine Granite Application:

It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling. The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, and other fields. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, kitchen cabinet basins, background wall, roman edge stone decorations, etc.

Contact Us Today to Get Price!

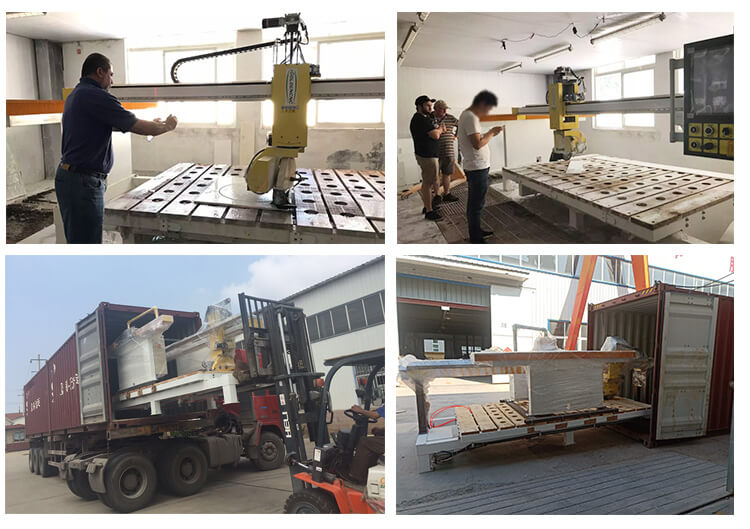

International Shipping Around the World
