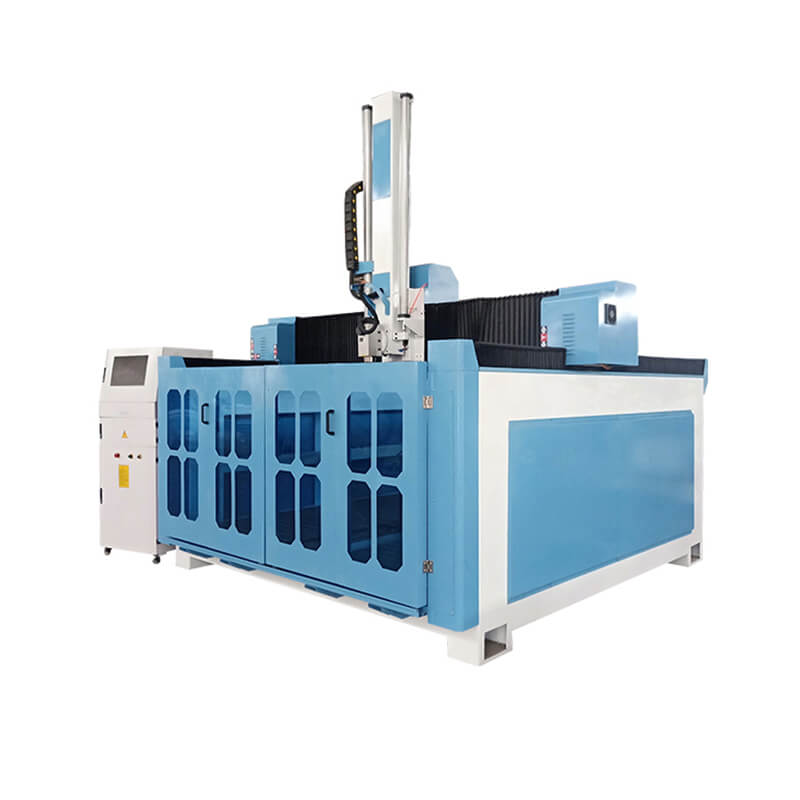

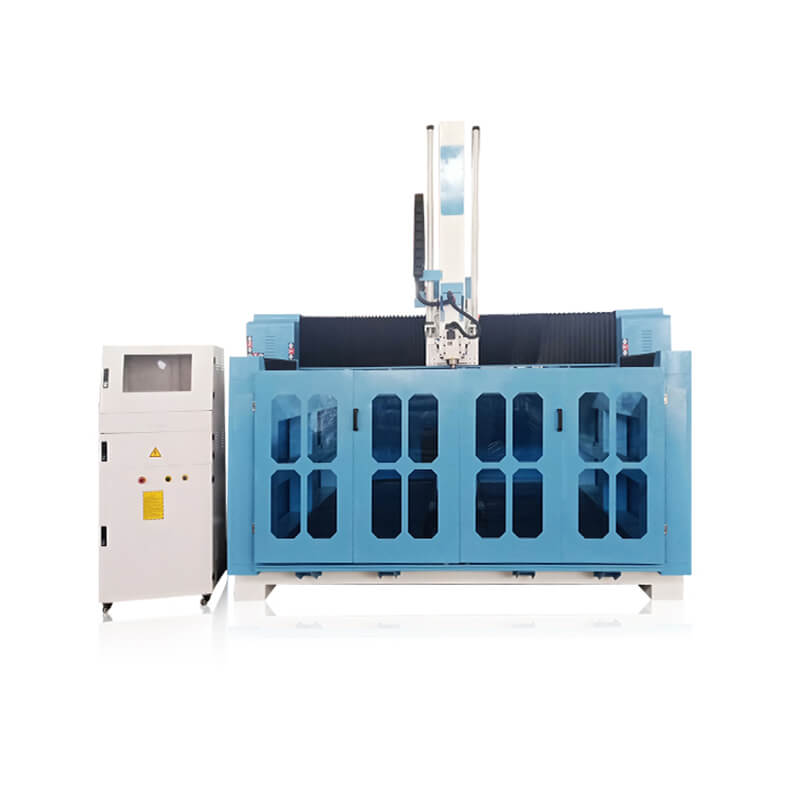

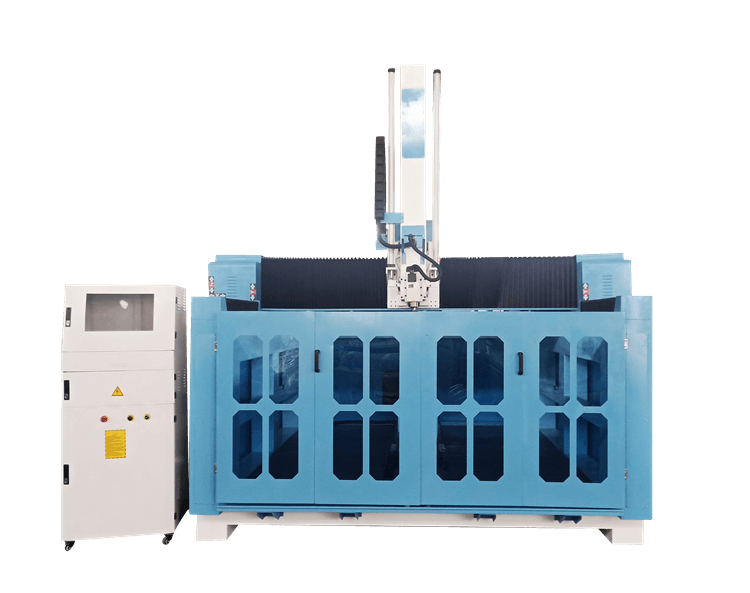

4 Axis CNC Foam Carving Router 1018

$23,000.00

EPS CNC router 4 axis machining centre, the spindle can swing 180 °, optional 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale 3D engraving, and curved surface processing is available, also known as foam CNC router machine, mold CNC router machine, EPS CNC carving machine.

$23,000.00 – $30,000.00

* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.

4 Axis CNC Foam Carving Router 1018

$23,000.00

Category:

4 Axis CNC Machining Centre for Foam, EPS, Wood

EPS CNC router 4 axis machining centre, the spindle can swing 180 °, optional 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale 3D engraving, and curved surface processing is available, also known as foam CNC router machine, mold CNC router machine, EPS CNC carving machine.

The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations.

3d Cnc Foam Cutting Machine Video

    Please prove you are human by selecting the tree.

    CNC Machining Center Parameter

    Technical Data

    Model iGW-MC-1080
    Working area 1500*3000*800mm
    Transmission X/Y rack and pinion, Z ball screw
    Table structure Aluminum profile
    Spindle power HQD 9KW
    Spindle speed 18000rpm/min
    Travelling speed 45m/min
    Working speed 30m/min
    Working Delicacy 0.02mm
    Repositioning Accuracy 0.03mm
    Driver motor Servo motor
    Control system DSP/Nc studio /Syntec
    Voltage 3 Phase/380V/50HZ

    If you need more detailed information, please inform us as soon as possible.

    Linear Automatic Tool Changer

    With the function of linear automatic tool changer, it make the whole processing more time-saving and more efficient.

    Air Cooling Spindle

    Equipped with HSD air cooling spindle with imported bearing, it has many advantages like long service life, low noise, and strong cutting ability.

    Worktable Rotary Device

    The worktable rotating device specially designed for sinking worktable has a thimble structure at both ends.

    It can process materials with a diameter of 800-1000, the length is optional, generally according to the bed size.

    Control System Optioned

    Taiwan LNC system is the standard system.

    Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

    Eps CNC Router 4 Axis Machining Centre

    Hot applications include:

    Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.

    >Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;

    >Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.

    Contact Us Today to Get Price!

      Please prove you are human by selecting the star.
