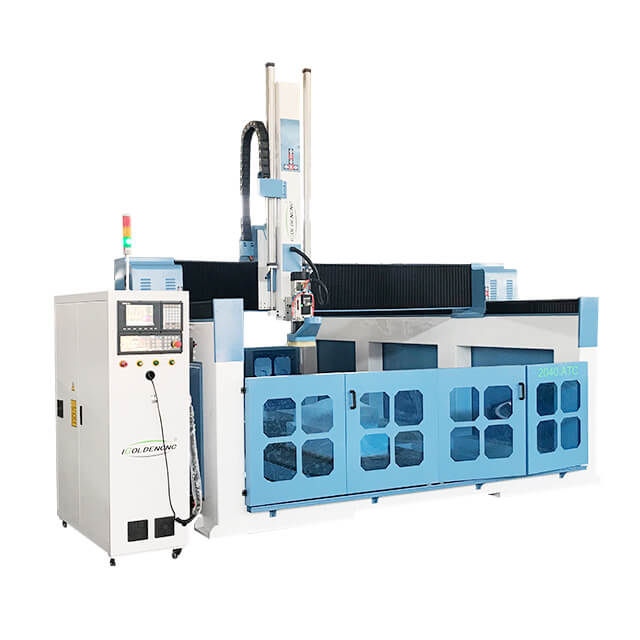

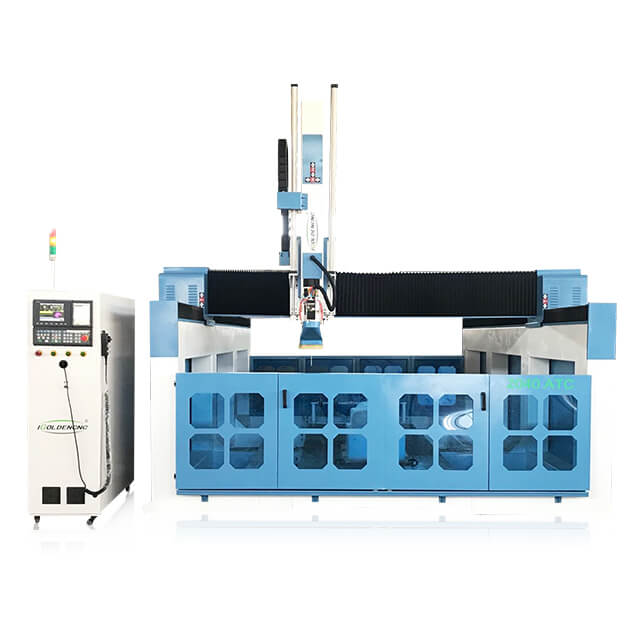

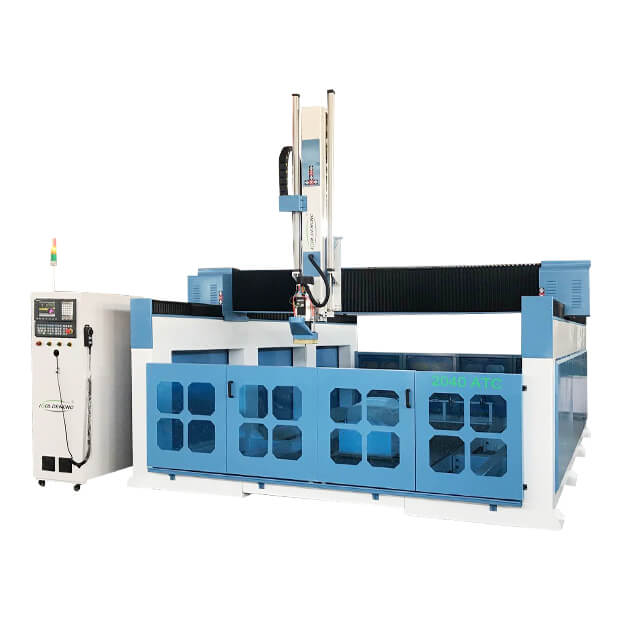

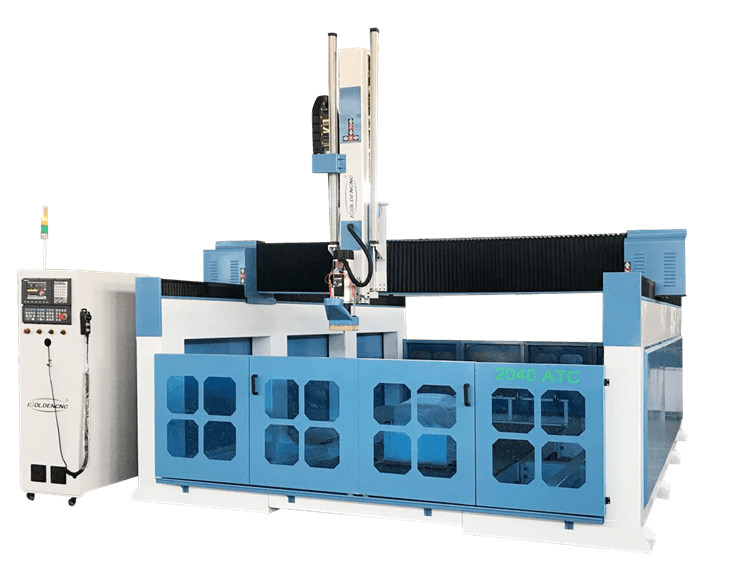

4 Axis CNC Foam Carving Router with Rotary Device

$23,000.00

EPS CNC router 4 axis machining centre, the spindle can swing 180 °, optional 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale 3D engraving, and curved surface processing is available, also known as foam CNC router machine, mold CNC router machine, EPS CNC carving machine.

$23,000.00 – $30,000.00

* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.

4 Axis CNC Foam Carving Router with Rotary Device

$23,000.00

Category:

4 Axis CNC Machining Centre for Foam, EPS, Wood

EPS CNC router 4 axis machining centre, the spindle can swing 180 °, optional 8 linear tool changers can be selected to meet the needs of different processing technologies, full-scale 3D engraving, and curved surface processing is available, also known as foam CNC router machine, mold CNC router machine, EPS CNC carving machine.

The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations.

3d Cnc Foam Cutting Machine Video

    Please prove you are human by selecting the tree.

    Introduction

    The 4 axis machining centre at a good price, provide several configurations to meet different requirement, perfect for several kinds of foam and mould router, the innovation model designed by iGOLDENCNC, combined with a competitive set of configurations. Therefore it may be your better choice to process some foam products.

    CNC Machining Center Parameter

    Technical Data

    Model iGW-MC-2040
    Working area 2000*4000*900mm
    Spindle HQD 9.0kw ATC air cooling
    Speed Speed 18000rpm
    Repositioning Accuracy 0.02mm
    Machine Body Square Tube Welding Structure
    Guide Rails Taiwan HIWIN
    Driver Japan YASKAWA Servo Drive and Servo Motor
    Reducer Japan SHIMPO
    Worktable Profile Clamping Table
    Frequency Converter Taiwan DELTA
    Electrical Components France SCHNEIDER
    Control System DSP/ NCSTUDIO
    Voltage 3phase 380V/50HZ

    If you need more detailed information, please inform us as soon as possible.

    Linear Automatic Tool Changer

    With the function of linear automatic tool changer, it make the whole processing more time-saving and more efficient.

    Air Cooling Spindle

    Equipped with HSD air cooling spindle with imported bearing, it has many advantages like long service life, low noise, and strong cutting ability.

    Worktable Rotary Device

    The worktable rotating device specially designed for sinking worktable has a thimble structure at both ends.

    It can process materials with a diameter of 800-1000, the length is optional, generally according to the bed size.

    Control System Optioned

    Taiwan LNC system is the standard system.

    Taiwan SYNTEC system, Germany SIEMENS system can be optioned.

    Eps CNC Router 4 Axis Machining Centre

    Hot applications include:

    Carving all kinds of non-metal materials processing such as foam, lost foam, automobile foam mold, yacht mold, large ship wooden mold, cast wooden mold, engineering plastic materials, aviation wooden mold, propeller, train wooden mold, etc.

    >Foam processing of automotive stamping molds, casting wood molds, automotive interiors, processing of engineering plastic materials;

    >Other industry molds: electrical appliance molds, lighting molds, ceramic sanitary ware, three-dimensional curved surfaces for large musical instruments, instrument molds, home appliance molds, air-conditioning molds, automotive molds, automotive interior molds, etc.
