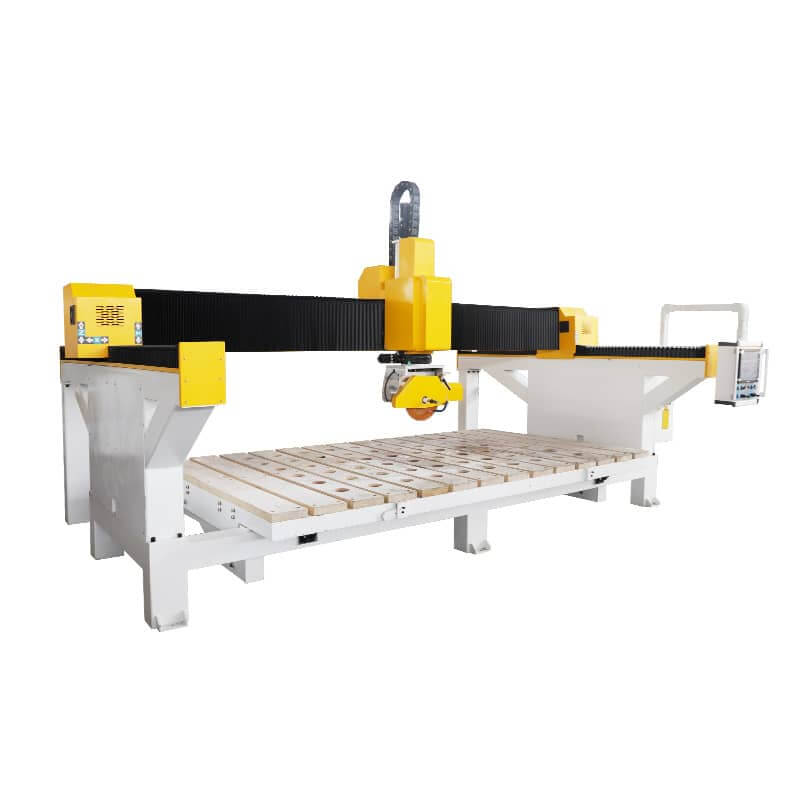

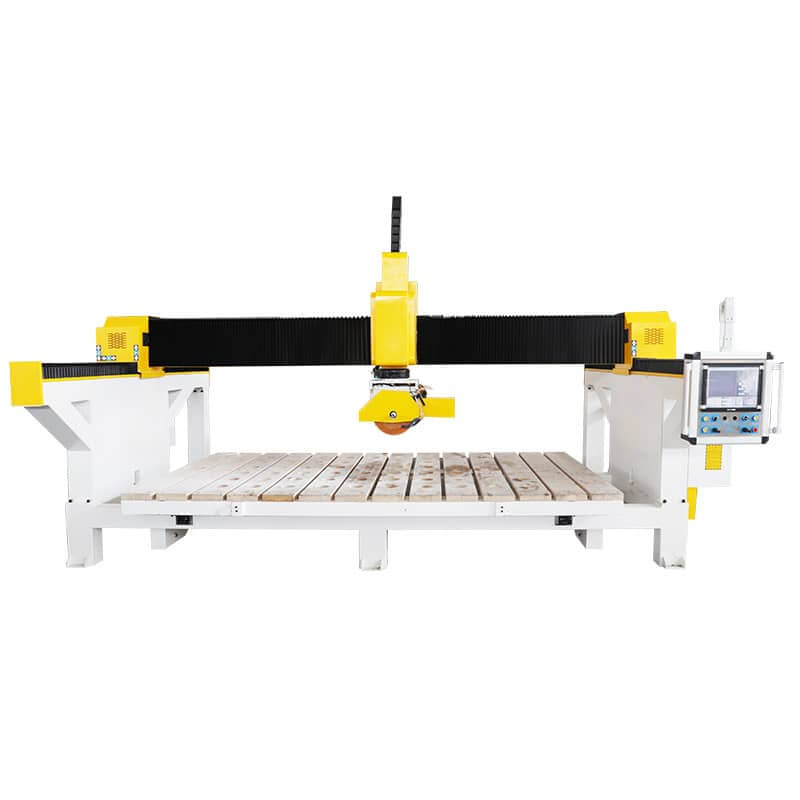

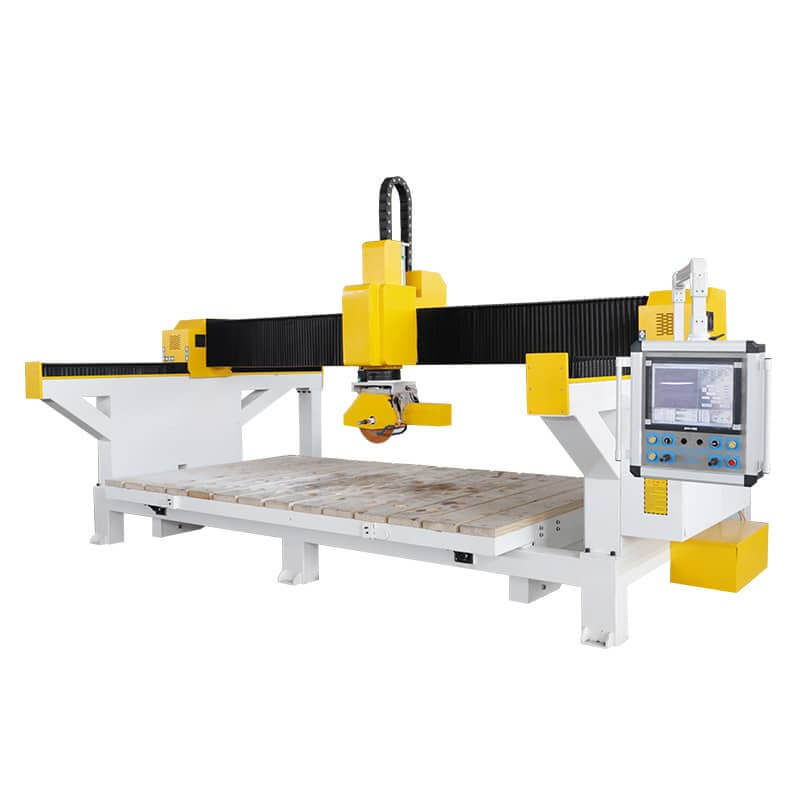

5 Axis CNC Stone Cutting Bridge Saw
This stone CNC machining center can cut quartz, marble, granite, and rock slabs with a powerful saw blade. It combines a saw blade and CNC router tools to achieve multiple advanced functions. For example, cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and other powerful functions. The 5 axis bridge saw is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, and other fields.
CNC Cutting Bridge Saw Video
Stone Bridge Saw Machine Parameter:
|Working table size||3000*2000mm|
|X-axis working stroke||3000mm|
|A-working stroke||360°free rotation|
|Pneumatic ball||easy to move marble|

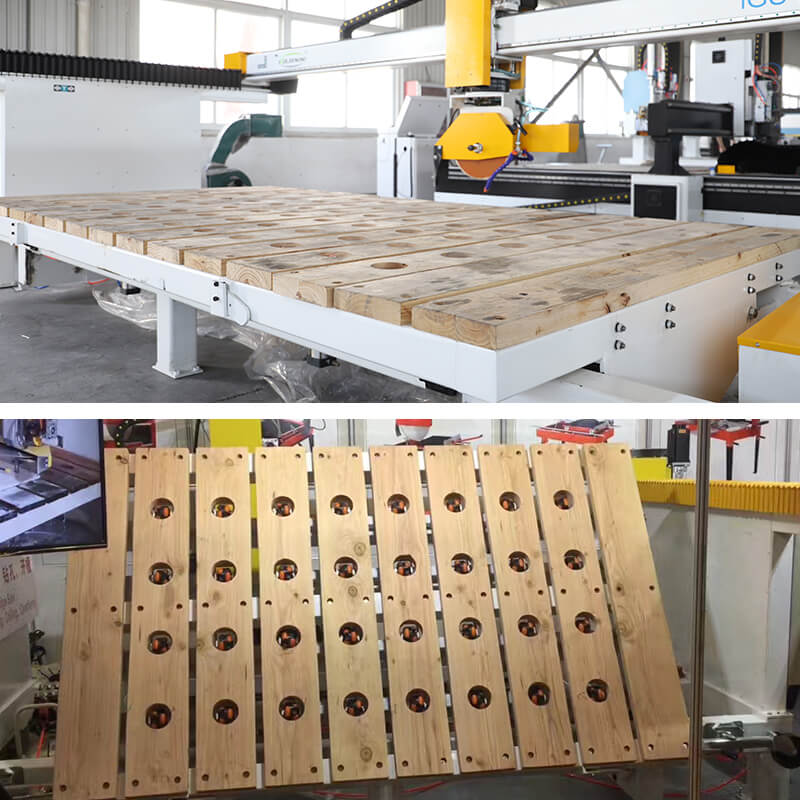

|Reversal table||for easy loading|
|Control system||Control system|
|The machine head||automatically flips 0-45-90 degrees|
|X/Y axis cutting speed||X/Y axis cutting speed|
|Z axis cutting speed||Z axis cutting speed|
|A cutting speed||0-7r/min|
|Red light positioning||Included (Infrared cutting reference)|
|Programming method 1||Manual programming|
|Programming method 2||Image input|
If you need more detailed information, please inform us as soon as possible.
Large Saw Blade
4kw high-power large saw blade cutting depth 10cm.Pure copper motor, 360° automatic rotating head.Low noise, long life, all-round cutting.
This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
Cutting and Milling
Easy to switch between cutting and drilling,The 5 axis CNC stone bridge saw is good at cutting, milling, chamfering and edging quartz, marble, artificial stone and slabs in regular and irregular shapes.
Independent research and development -IGOLDENCNC control system
Wireless control, easy to operate
Bridge Cutting Machine Granite Application:
It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling. The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, and other fields. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, kitchen cabinet basins, background wall, roman edge stone decorations, etc.
