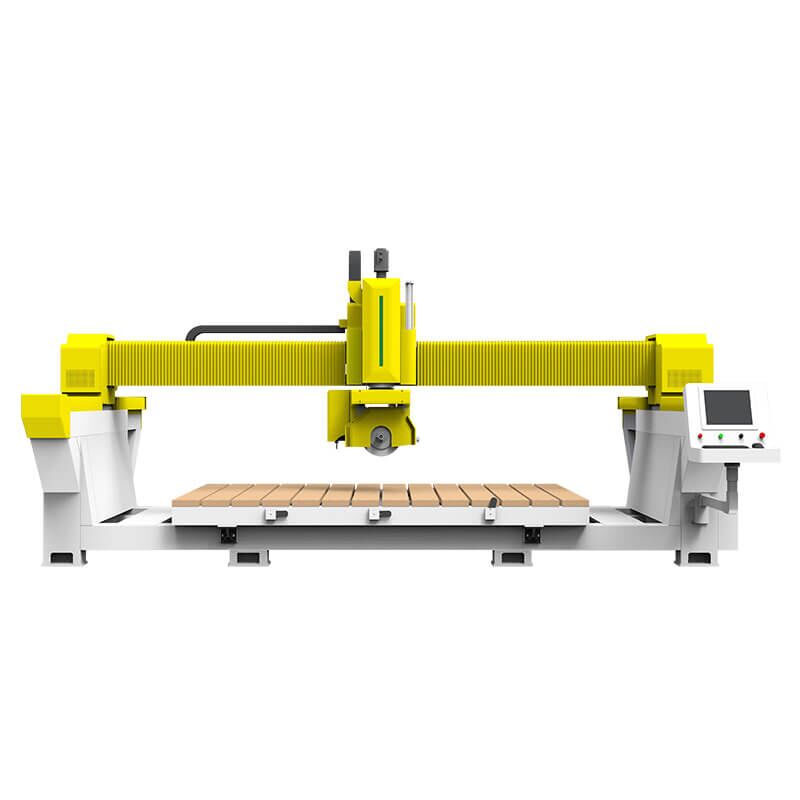

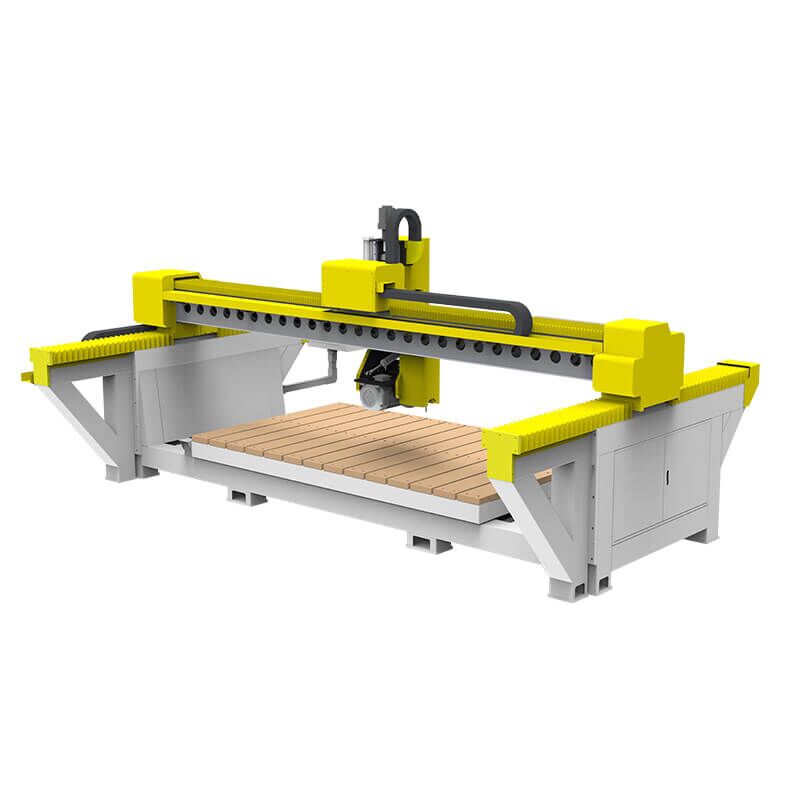

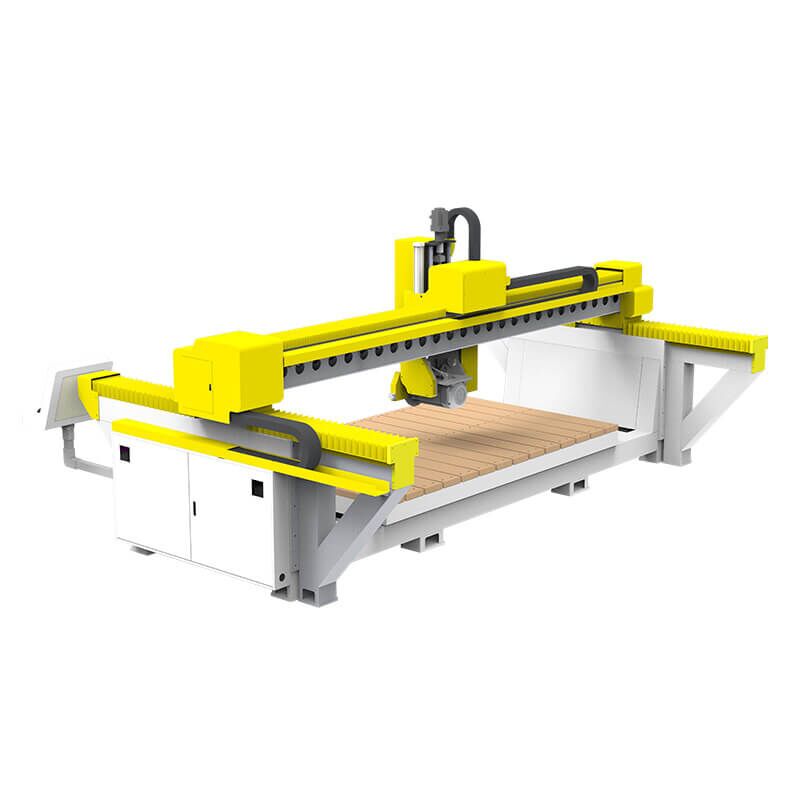

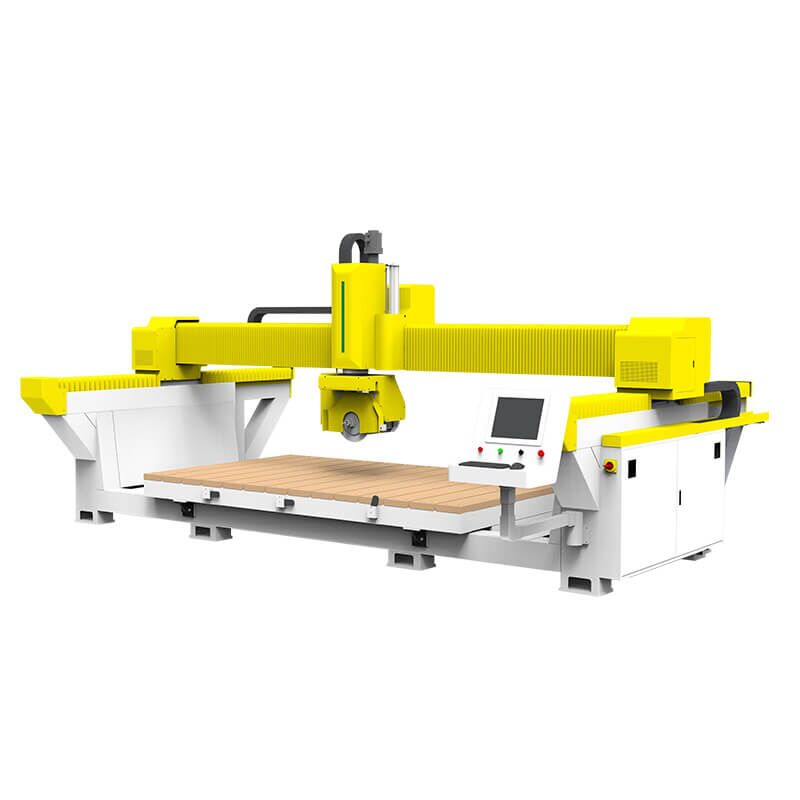

4+1 Axis CNC Stone Cutting Bridge Saw
The Intelligent 4+1 bridge cutter is a fully functional processing equipment with a 360 degree rotation of the head. Saw blade with spindle can be cut, chamfering, digging and other multi-functional integration, intelligent operating system, simple and easy to learn; High quality motor, high precision, fast speed; Transverse, longitudinal, arc, circular, arbitrary Angle, shape cutting. The machine head can move and rotate freely. In addition to cutting modeling,it can also be used for large plate opening, 45 degree chamfering, opening basin hole, stove hole, oblique line cutting.
Suitable for quartzite, rock plate, artificial stone, granite, marble all kinds of large and small stone decoration engineering stone processing machinery. Save plate save time save worry save effort!
CNC Cutting Bridge Saw Video
4+1 Axis Bridge Saw Machine Parameter:
|Lathe bed||Heavy duty welded bed|
|Guide rail||Taiwan HIWIN30|
|Motor power||7.5kw/11kw / 15kw/18.5kw|
|Saw blade diameter||350mm/400mm/450mm|
|Motor power||XYZ axis 1.3kw (Z-axis holding brake); C axis 1.3kw|
|Voltage||3 . 380V/220V 50-60Hz 10A|
|Standard function||Water pump, water pipe (12m long, 16mm diameter), |
laser positioning, knife setting instrument, can cut square,
round, horse belly side cutting, Taichung basin cutting, 45° oblique cutting
|Opention||Main shaft 4.5KW water-cooled main shaft, |
inverter, transformer, clean measuring software
If you need more detailed information, please inform us as soon as possible.
CNC Cutting Bridge Saw Advantage
- Using automatic touch human-machine interface, intuitive operation, simple and convenient;
- Main core control component USES the first-line brand, stable performance and long life;
- Can spin 0 ° to 360 ° and 90 ° inclined processing, used in any direction and any Angle of the cutting;
- Implementation heterosexual complex surface machining, cutting, milling, drilling and multi-function in one;
- Increase other optional features, such as photo function layout, automatic measuring plate thickness, automatic pressure material, etc.
Large Saw Blade
4kw high-power large saw blade cutting depth 10cm.Pure copper motor, 360° automatic rotating head.Low noise, long life, all-round cutting.
This bridge saw uses a high-precision RV reducer, ensuring better rotating precision of the cutting head.
Laser positioning function, more accurate standard, improve the accuracy.
Automatic touch screen cutcam system
Professional CNC system, easy to set and machining, touch control, simple operation.
Bridge Cutting Machine Granite Application:
It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling. The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, and other fields. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, kitchen cabinet basins, background wall, roman edge stone decorations, etc.
