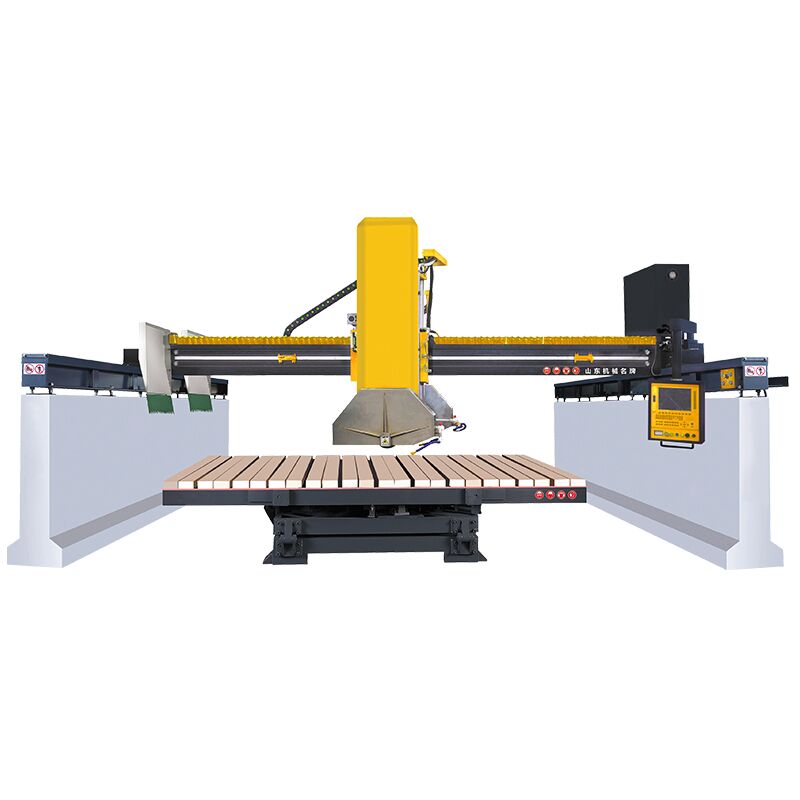

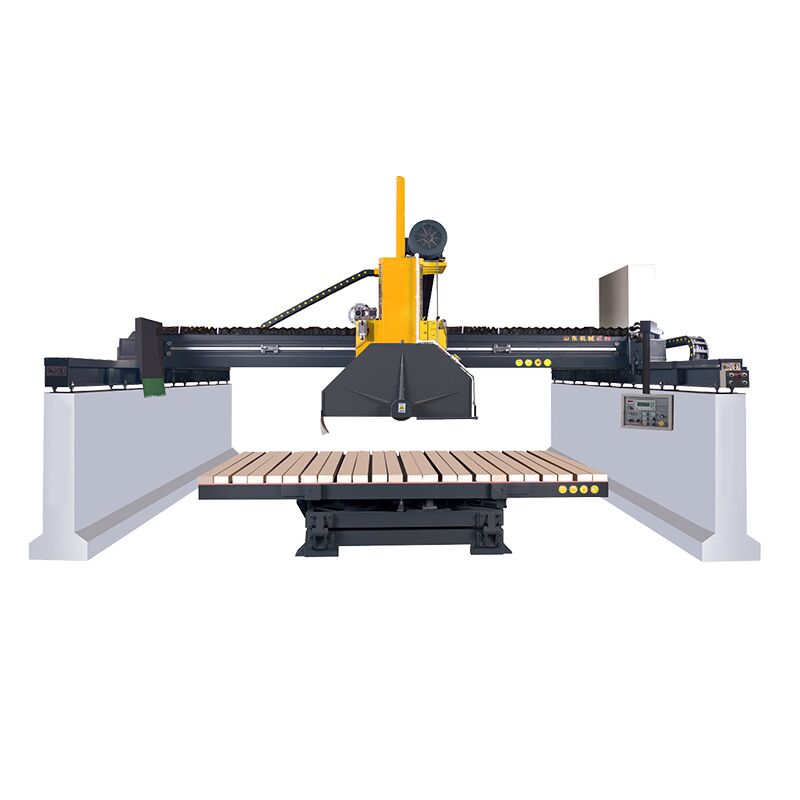

Infrared Bridge Stone Cutting Machine
The movement of this equipment is controlled by computer and can be fully automated. The mechanical parts are made of high-quality steel, and four guide columns are used to lift and lower, and the electric control part is precisely assembled with advanced imported electrical components. The equipment adopts PLC control system, good frequency converter speed regulation, infrared tool setting instrument, touch operating system, and computer automatic control ensures the accuracy of cutting. Therefore, the equipment has high intelligence, high stability, high efficiency, and operation. Simple and convenient, it is especially suitable for the processing of high-value, large-scale granite and marble slabs.
Suitable for quartzite, rock plate, artificial stone, granite, marble all kinds of large and small stone decoration engineering stone processing machinery. Save plate save time save worry save effort!
CNC Cutting Bridge Saw Video
4+1 Axis Bridge Saw Machine Parameter:
|Max. processing size (L * W * H)||3200*2000*370mm||3200*2000*470mm|
|Saw blade diameter||400—1000mm||600—1200mm|
|Working table size（L*W）||3200*2000mm||3200*2000mm|
|Worktable turn-over degree||0—85°||0—85°|
|Worktable rotation range||0—90°/ 0—360°||0—90°/ 0—360°|
|Worktable rotation range||22/30 KW||22/30 KW|
If you need more detailed information, please inform us as soon as possible.
CNC Cutting Bridge Saw Advantage
- The worktable is controlledby hydraulic rotation and also can be locked in any position Manually.
- It is applicable to cutting the valuable and large sized stone board for many specifications ·The machine adopt cast iron on the main part of machine body ensure stability while cutting ·
- The cutting speed is controlled by inverter to achieve stepless adjustment, the head movements, table title up, rotation and position use hydraulic transmission to move. it can be cut by manually and fully automatic easily.
- It adopts PLC programmable control system and touch screen operator and combined with high precision encode positioning.
Bridge Cutting Machine Granite Application:
The machine working fast and is especially suitable for cutting high-value, high-precision, medium and large-sized slabs, angles, octagons,arcs, and circles.
