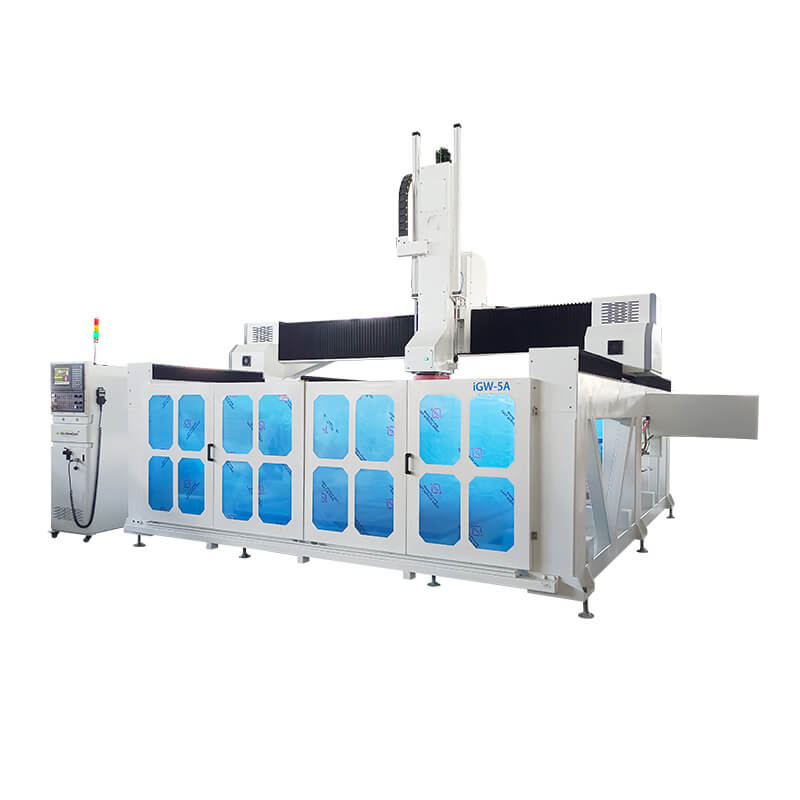

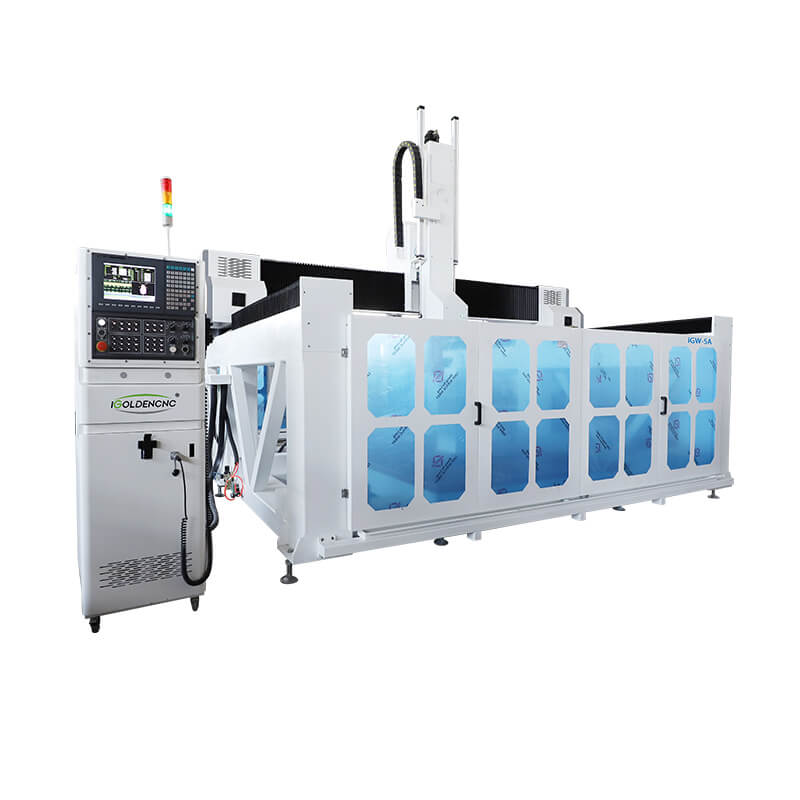

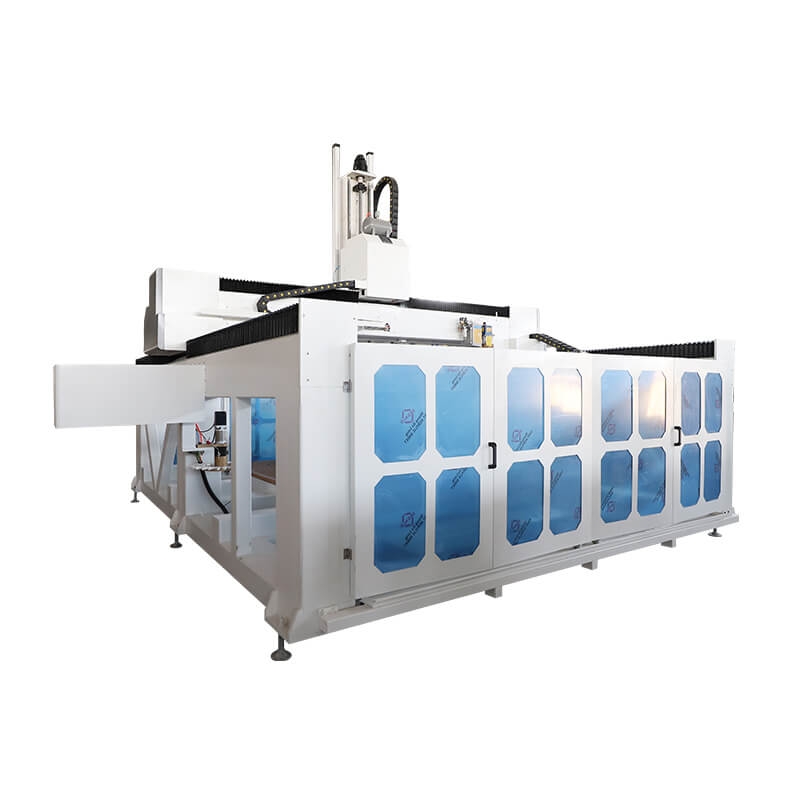

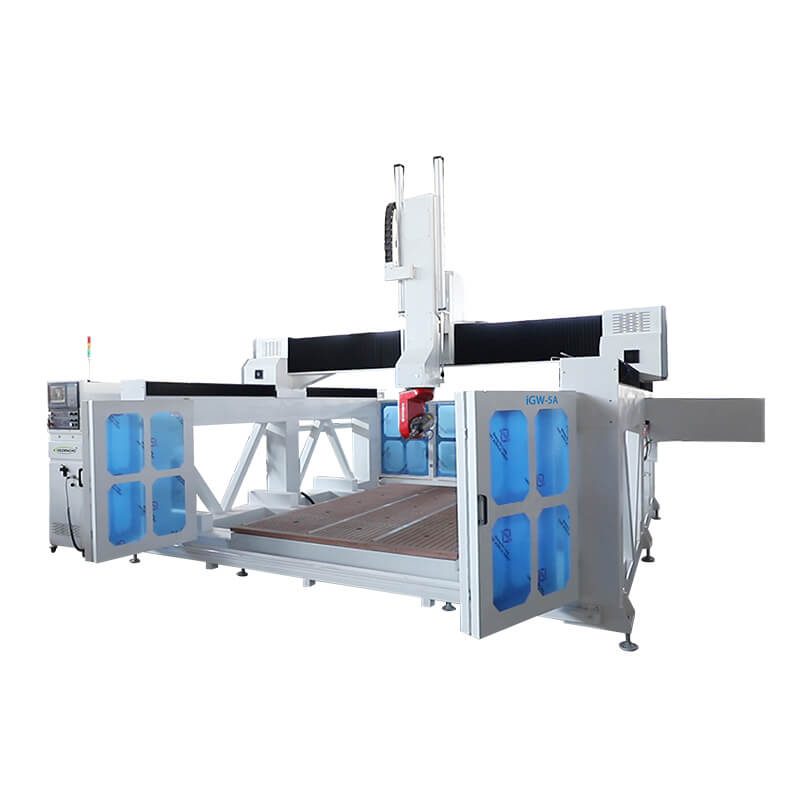

5 Axis Gantry Moving CNC Machining Centre
5 axis CNC machine is also known as 5 axis CNC router, 5 axis CNC machining center, 5 axis CNC milling machine, or multi axis CNC machine.Adcanced 5 axis cnc router machine, also known as 5 axis cnc machining center, 5 axis cnc milling machine, is good at space curved surface processing, special-shaped processing, hollow processing, punching, oblique drilling, chamfering, etc. It is widely used in aerospace, military scientific research, precision machinery, high-precision medical equipment, normal manufacturing, etc.
CNC 5 Axis Gantry Machining Center Video
5 Axis CNC Router Machine Parameter
|X, Y Axis Working Area||1720*3040mm|
|Z Axis Working Height||600-1200optionedmm|
|Body Structure||Welding Body|
|X, Y Axis Structure||Linear Guide Rail
|Z Axis Structure||Linear Guide RailScrew|
|Max. Running Speed||60000mm/min|
|Max. Working Speed||30000mm/min|
|Spindle||14kw ATC Spindle
|Working Voltage||220V/ 380V±10%50-60Hz|
We offer customized services according to your requests such as the working area and specifications.
Thickening Steel Gantry
The damage to the motion conduction device is small, and the resistance to the drive motor is small, so that the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use costs are reduced.
Disc Tool Bank
Tool magazine with 6-10 discs on the side.Load 6-10 tools with different functions at one time and change the tool in 2 seconds.Save time for manual tool change and improve work efficiency.
14KW SCM five-axis spindle + swing head
Taiwan SYNTEC System
The System with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
Application of 5 Axis CNC Router Machine
Composite materials industry: Trimming and punching of various composite materials such as plastic parts, glass fiber reinforced plastic parts, rubber and plastic products;
Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;
Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;
Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.
