$55,000.00
As advanced CNC equipment, 5 axis CNC machining center or CNC router is designed specifically for complex curved surfaces. It is widely used in aviation, aerospace, automotive, military, scientific research, precision instruments, high-precision medical equipment, and other industries.
$55,000.00 – $60,000.00
* Contact us for latest price for customized machine according to your project’s requirements of table formats, functions, etc.
As advanced CNC equipment, 5 axis CNC machining center or CNC router is designed specifically for complex curved surfaces. It is widely used in aviation, aerospace, automotive, military, scientific research, precision instruments, high-precision medical equipment, and other industries. It can process an extensive range of materials, such as wood, metals, stones, plastic, styrofoam, composites, etc.
| X, Y Axis Working Area | 1200*2000mm |
| Z Axis Working Height | 600-1200 optionedmm |
| Positioning Accuracy | 0.03mm |
| Re-positioning Accuracy | 0.02mm |
| Body Structure | Welding Body |
| X, Y Axis Structure | Linear Guide Rail, Gear Rack |
| Z Axis Structure | Linear Guide Rail, Screw |
| Max. Running Speed | 60000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle | 14kw ATC Spindle（Optioned） |
| Spindle RPM | 24000rpm/min |
| Working Voltage | AC 220V/ 380V±10%,50-60Hz |
| Machine Weight | 2300kg |
We offer customized services according to your requests such as the working area and specifications.
The damage to the motion conduction device is small, and the resistance to the drive motor is small, so that the accuracy of the gantry is maintained for a long time, the service life is improved, and the maintenance and use costs are reduced.
Tool magazine with 6-10 discs on the side.Load 6-10 tools with different functions at one time and change the tool in 2 seconds.Save time for manual tool change and improve work efficiency.
The System with break point memory, power outages continued carving, processing time forecast, and other functions to ensure that accidental processing.
Composite materials industry: Trimming and punching of various composite materials such as plastic parts, glass fiber reinforced plastic parts, rubber and plastic products;
Mold industry: 5 axis processing of FRP wood mold, casting wood mold, resin products, sludge model and various non-metal molds;
Ceramic sanitary industry: 5 axis processing of gypsum molds, 5 axis processing of various gypsum products;
Furniture industry: 5 axis processing of solid wood furniture, 5 axis processing of various furniture tenon and mortise pieces, 5 axis processing of stair elbows, and 5 axis processing of various furniture.

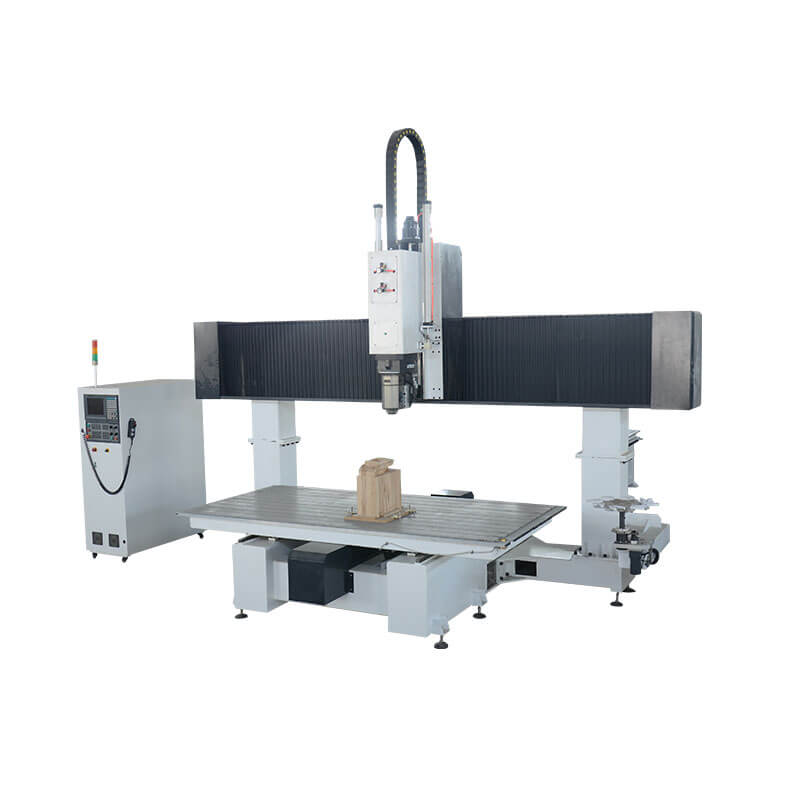

5 Axis CNC Router

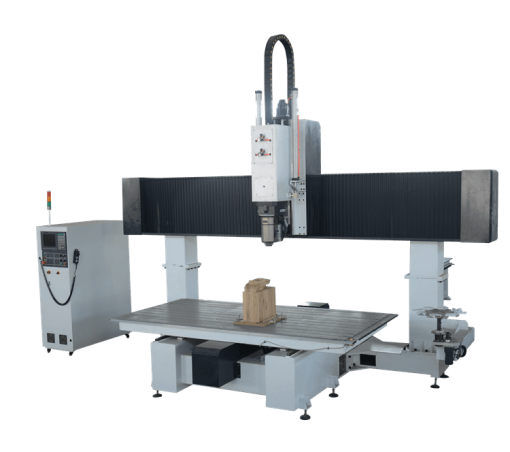

5 Axis CNC Router

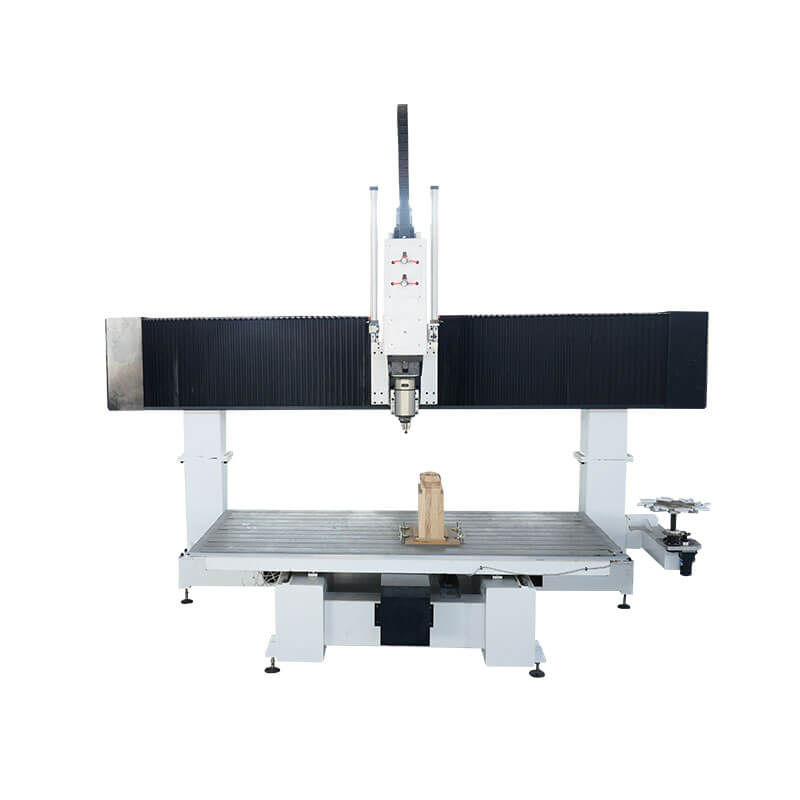

5 Axis CNC Router
