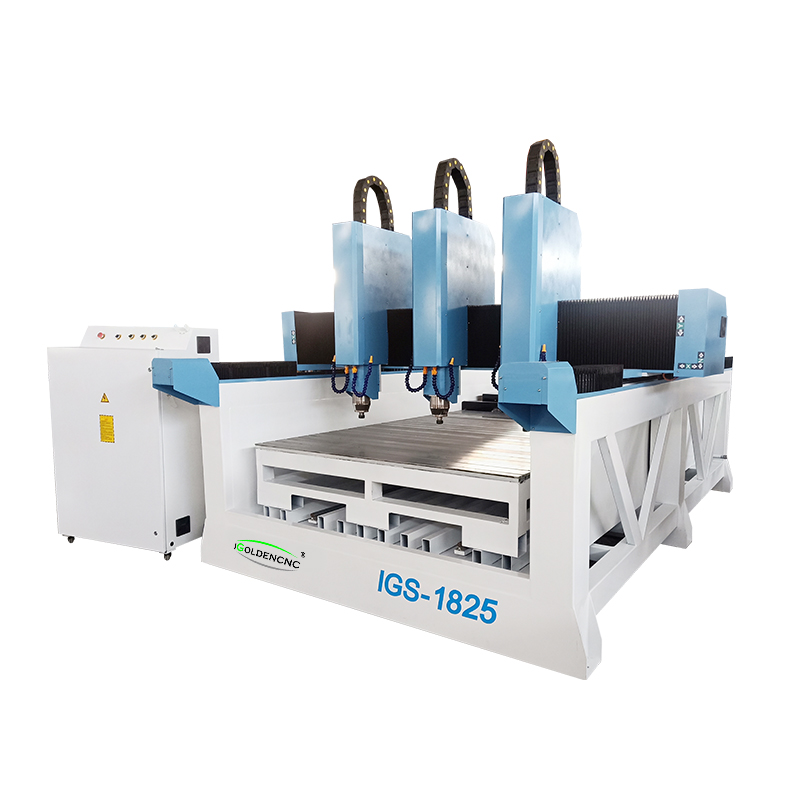

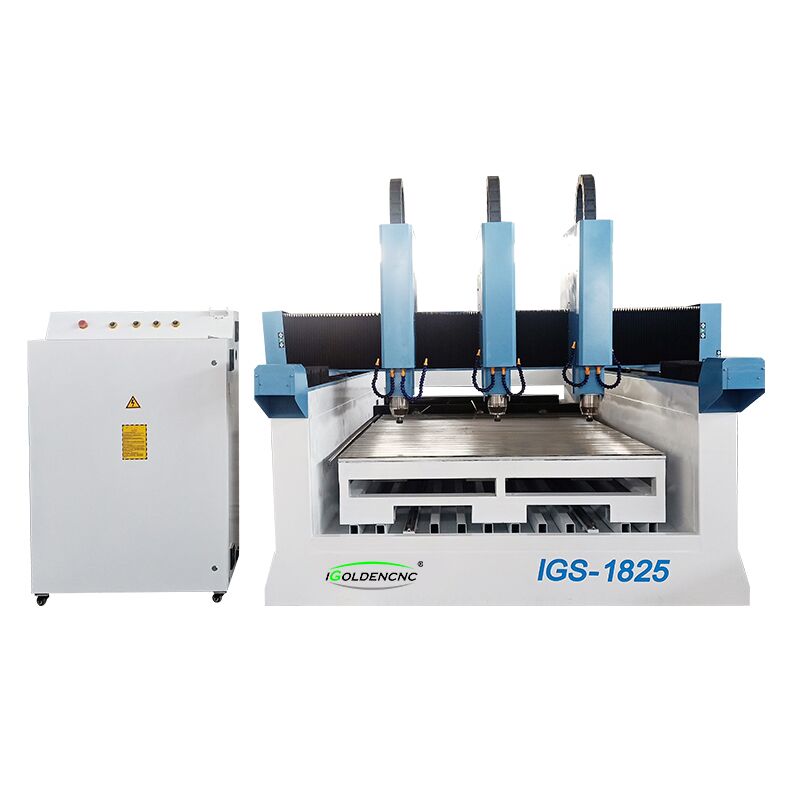

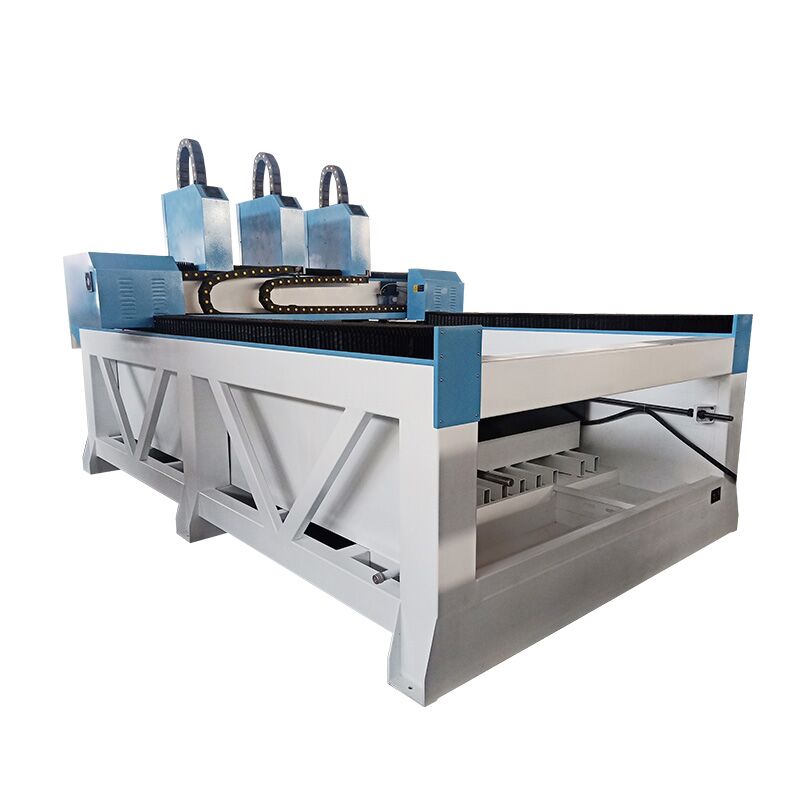

CNC Stone Carving Machine
The most classic style stone CNC engraving machine, using high-power water-cooled spindle。 Ensure long time carving running smoothly, high precision and fast speed.The stone router machine can complete functions of engraving, carving, cutting, milling, and polishing of granite, quartz, marble, tombstone, ceramic tiles, and other artificial stones. Therefore, we also call it marble CNC router, marble carving machine, granite CNC router, CNC granite cutting machine for sale, quartz stone machine, etc.
CNC Stone Carving Machine Video
Stone CNC Machine for Marble, Granite and Quartz
The stone CNC machine refers to the CNC machine designed for processing various natural and artificial stone materials. For example, a stone CNC machine can process quartz stone, marble, slate, granite, ceramic tile, and many artificial stones.
CNC Stone Carving Machine Parameter
|Spindle||5.5kw water-cooled spindle * 3|
|Motor||Japan yaskawa servo motor 750w|
|Guide rails||Hiwin square guide rails|
If you need more detailed information, please inform us as soon as possible.

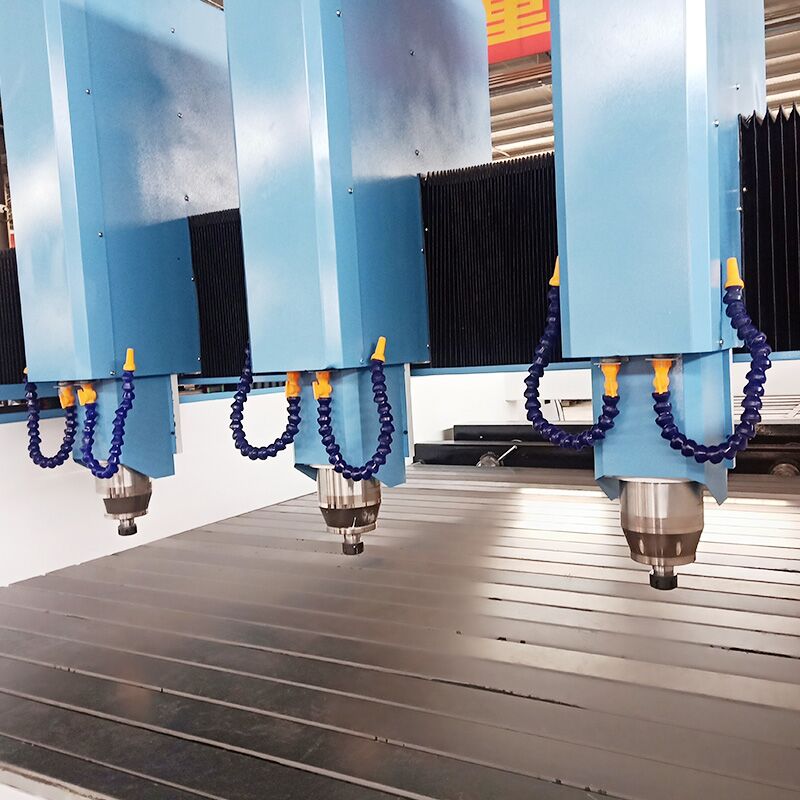

5.5kw Water-cooled Spindle*3
Dustproof and waterproof sealed, the body is smooth and not easy to rust, and the rotation accuracy is high. The bearing has long life, high speed and low noise, stable operation, no chipping in machining, high spindle accuracy and maintenance-free.
High strength, good rigidity, lightweight, no deformation, long service life. The damage to the motion transmission device is small, and the resistance to the drive motor is small so that the gantry accuracy is maintained for a long time, the service life is improved, and the maintenance and use costs are reduced.
Leadshine servo motor drive + Z-axis brake
Table Rotary Lathe Device(Options)
It does not need to rotate the workpiece repeatedly; complete the calculation of the tool path at one time; reduce the finishing allowance; the tool path can be layered and rough machining; realize local rotation processing;
Stone Engraving Machine Application
Stone engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, cutting, drilling. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, glass, plastic, chemical composite board, bamboo, wood, curved surface, spherical surface, stainless steel, iron, copper, aluminum, titanium alloy and other materials. If you have the above materials need to process, stone engraving machine is definitely your best choice.
MATERIAL Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA Soft metal: aluminum, brass, copper, mild steel Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
